Hauv kev tsim tsheb niaj hnub no, Lub Cev -hauv-Dawb (BIW) vuam zoo ncaj qha txiav txim siab lub zog ntawm lub tsheb thiab qhia txog kev ruaj ntseg ntawm cov kab ntau lawm. Ib lub tsheb neeg nrog caij muaj4,000 txog 6,000 qhov chaw welds, thaum lub tsheb hluav taws xob thiab siab - lub zog steel qauv yuav dhau7,000 weld point. Nrog xws li ib tug loj tus naj npawb ntawm welds, txawm ib tug me me feem pua ntawm cov pob qij txha uas tsis ruaj tsis khov tuaj yeem sai sai mus rau qhov zoo txaus ntshai thaum lub sij hawm zaum kawg kev soj ntsuam. Vim li no, automotive manufacturers feem ntau yuav tsum tau ua ntej -thov weld txais tus nqi saum toj no99.5%, nrog rau qhov tseem ceeb structural zones mus txog99.9% sib xws.
Hauv kev tsim khoom txhua hnub,spatterthiabtsis muaj zog weldsnyob twj ywm ob feem ntau yam cuam tshuam rau weld sib xws. Spatter tsis tsuas yog ua rau lub ntsej muag ua haujlwm thiab ua rau lub sijhawm sib tsoo ntau dua, tab sis qhov tseem ceeb tshaj, nws tuaj yeem npog qhov tsis xws luag hauv cov vuam, ua rau cov welds tsis muaj zog. Thaum cov welds tsis muaj zog dhau mus rau hauv cov txheej txheem kev sib dhos hauv qab, lawv feem ntau ua rau loj - nplai rework lossis cov khoom tsis lees paub, uas tuaj yeem cuam tshuam cov sijhawm tsim khoom thiab nce nqi tsim khoom ntau.
Ib txwm AC kuj qhov chaw vuam tshuab feem ntau ua tiav ua ntej- kis tus nqi nyob rau hauv qhov ntau ntawm96% mus rau 98%, feem ntau vim muaj kev txwv tsis pub muaj kev tswj xyuas cov khoom siv hluav taws xob zoo. Thaum qhov kev ua tau zoo no tau txais txiaj ntsig hauv kev tsim tsheb yav dhau los uas siv cov hlau me me, lub cev lub tsheb niaj hnub no vam khom rau siab -lub zog steel, cov ntawv galvanized, thiab ntau- txheej txheej. Cov ntaub ntawv no xav tau kev tswj xyuas nruj dua, thiab tsuas yog nce vuam tam sim no tsis txaus. Hloov chaw, tus yuam sij rau kev txhim kho weld sib xws nyob hauvprecision tswj ntawm vuam waveforms, kom ntseeg tau tias txhua lub zog tawm tswv yim tseem ruaj khov thiab rov ua dua.
Vim li cas Spatter thiab Welds tsis muaj zog yuav tshwm sim?
Nyob rau hauv ntau qhov chaw tsim khoom, spatter thiab tsis muaj zog welds feem ntau raug ntaus nqi rau cov khoom siv tsis sib xws lossis cov neeg ua haujlwm. Txawm li cas los xij, los ntawm qhov kev xav ntawm engineering, cov teeb meem no feem ntau yog txuas rau cov cua sov tsis ruaj khov. Thaum welding tam sim no nce sai heev los yog thaum tiv thaiv kev hloov pauv, cov hlau hauv zos tuaj yeem yaj sai sai thiab raug ntiab tawm ntawm qhov chaw vuam vim muaj hluav taws xob sib nqus, tsim kom pom qhov sib txawv ntawm qhov vuam.
Tsis muaj zog welds, ntawm qhov tod tes, tshwm sim thaum tsis txaus cua sov input tiv thaiv kev tsim ntawm tag nrho cov tsim weld nugget. Cov kev tsis xws no feem ntau nyuaj rau kev pom qhov muag tab sis tuaj yeem txo qhov vuam lub zog thiab qaug zog lub neej. Hauv cov khoom siv hauv tsheb, cov welds tsis muaj zog tuaj yeem tsim cov ntsiab lus zais tsis zoo uas cuam tshuam kev nyab xeeb ntawm lub tsheb thaum lub sijhawm ua haujlwm ntev - lub sijhawm ua haujlwm lossis kev sib tsoo.
Txhawm rau kom nkag siab zoo dua qhov feem ntau vuam tsis xws luag thiab lawv cov kev cuam tshuam ntau lawm, cov lus hauv qab no qhia txog cov xwm txheej zoo li no:
Common Spot Welding Defects thiab lawv qhov cuam tshuam
| Hom kev puas tsuaj | Tej yam tshwm sim | Keeb kwm | Kev cuam tshuam ntau lawm |
|---|---|---|---|
| Spatter | Hlau hais nyob ib ncig ntawm weld | Kev nrawm nrawm tam sim no lossis kev sib cuag tsis ruaj khov | Nce kev sib tsoo thiab electrode hnav |
| Weak Weld | Undersized weld nugget | Input tshav kub tsis txaus | Txo kev sib koom ua ke |
| Shrinkage Void | Internal kab noj hniav tsim | Cov cua txias tsis ruaj khov | Txo weld ntom |
| Hlawv -Los ntawm | Khoom perforation | Tshaj tam sim no lossis tsis tshua muaj siab | Workpiece tsis kam |
Cov ntaub ntawv ntau lawm los ntawm cov tsheb vuam kab qhia tau hais tias spatter -cov teeb meem cuam tshuam tuaj yeem ua kom tiav cov haujlwm los ntawm30% mus rau 50%, thaum rework tshwm sim los ntawm qaug zog welds tuaj yeem raug nqipeb mus rau tsib zaug ntxivtshaj li cov txheej txheem vuam ua haujlwm. Nyob rau hauv siab -cov khoom siv tsheb loj, ib teev ntawm kev poob qis yuav ua rau poob ntawm ntau txhiab mus txog kaum txhiab nyiaj, ua rau weld stability ob qho tib si zoo thiab nyiaj txiag tseem ceeb.
MFDC Vuam: Los ntawm Rough Rhaub mus rau Precision Thaum tshav kub kub tswj
Tsoos AC chaw vuam tshuab ua haujlwm ntawm50 Hz, ua alternating tam sim no hla xoom thaum txhua lub voj voog. Qhov kev cuam tshuam txuas ntxiv ntawm tam sim no ua rau thaj tsam weld muaj kev sib txuas txuas ntxiv ntawm kev ua kom txias thiab rov ua kom sov. Xws li kev hloov pauv thermal feem ntau ua rau muaj qhov tsis ruaj khov tsis muaj teeb meem thiab ua rau muaj kev cuam tshuam ntau ntxiv.
Medium Frequency Direct Current (MFDC) vuam tshuab, los ntawm kev sib piv, hloov lub zog tuaj rau hauvsiab - zaus tam sim no tshaj 1,000 Hz, uas yog ces rectified rau hauv ruaj khov direct tam sim no. Vim tias qhov tam sim no tseem nyob tas mus li, cov khoom siv hluav taws xob ua kom zoo sib xws, tso cai rau cov weld nugget tsim kom sib npaug. Qhov kom zoo dua no ua qhov tseem ceeb tshwj xeeb tshaj yog thaum vuam siab -lub zog steels lossis cov khoom siv galvanized.
AC vs MFDC Spot Welding Performance Comparison
| Parameter | AC Vuam | MFDC vuam | Kev cuam tshuam |
|---|---|---|---|
| Tso zis zaus | 50 Hz | 1,000-4,000 Hz | Ntau zaus txhim kho kev ruaj ntseg |
| Hom tam sim no | Hloov | Direct Tam sim no | Tshem tawm kev cuam tshuam tam sim no |
| Thaum tshav kub kub stability | Nruab nrab | Siab | Ntau uniform nugget tsim |
| Spatter Rate | Siab dua | Txo los ntawm 60-70% | Tsawg qhov chaw paug |
| Tswj qhov tseeb | ±8–10% | Hauv ± 2% | Txhim kho qhov sib xws ntawm weld |
| Zog Efficiency | qis | 15-25% siab dua | Txo kev siv hluav taws xob |
Hauv qhov chaw tsim khoom tiag tiag, MFDC vuam tshuab tau ua kom pom kev txhim kho zoo ib yam ntawm cov vuam zoo. Ntau lub tuam txhab tsheb tau tshaj tawm tias kev hloov kho dua tshiab rau MFDC thev naus laus zis tuaj yeem nce ua ntej - dhau qhov kev lees txais weld los ntawm kwv yees li97% mus rau 99.5%, txo qis rework thiab txhim kho ntau lawm throughput.
Multi-Theem Waveform Control: Xa Lub Zog Thaum Nws Tseem Ceeb
Raws li cov khoom siv tsheb ua ntau dua, suav nrog ntau- txheej txheej thiab cov khoom sib xyaw xws li cov hlau galvanized thiab siab - lub zog steel, qhov vuam qhov rai yuav nqaim zuj zus. Yog tias qhov tam sim no nce siab dhau lawm, kev tawg ntau dhau yuav tshwm sim. Yog tias qhov tam sim no tsis txaus, kev tsim nugget yuav ua tsis tiav. Txhawm rau daws cov teeb meem no, niaj hnub MFDC vuam tshuab cia siab raumulti-theem waveform tswj, tso cai rau kev xa tawm maj mam thiab tawm tswv yim thoob plaws hauv lub voj voog vuam.
Hom Peb -Theem Vuam Waveform Structure
| Theem | Lub luag haujlwm tseem ceeb | Qhov ntsuas tam sim no | Cov txiaj ntsig zoo |
|---|---|---|---|
| Preheat theem | Tshem tawm cov coatings | 20–40% | Txo qhov pib spatter |
| Main Weld theem | Form weld nugget | 100% | Xyuas kom muaj zog weld |
| Forge theem | Compress nugget | 40–60% | Txhim kho qhov ceev |
Hauv kev xyaum, kho kom raug ntau- theem waveforms ua kom muaj kev ruaj ntseg zoo dua. Piv txwv li, nyob rau hauv galvanized steel welding, lub preheat theem pab tawg nto coatings thiab stabilize kev sib cuag tsis kam, thaum lub ntsiab theem ua kom muaj cua sov txaus rau kev tsim nugget. Qhov kawg forge theem siv tswj compression los txhim kho nugget ceev thiab txo qhov tsis xws luag sab hauv.
Engineering cov ntaub ntawv qhia tau hais tias optimized waveform tswv yim yuav txo tau shrinkage defects los ntawmtshaj 80%thaum tuav weld zog variation nyob rau hauv±3 N, uas ua rau muaj kev rov ua haujlwm vuam zoo heev.
Kaw-Loop Feedback Control Ua kom ntev- Lub Sij Hawm Stability
Vuam tej yam kev mob yeej tsis zoo li qub. Nyob rau tib lub sijhawm, electrodes hnav, daim ntawv thickness sib txawv me ntsis, thiab txheej txheej yuav hloov. Yog tsis muaj tiag - sijhawm them nyiaj, cov hloov pauv no maj mam degrade weld zoo.
Niaj hnub nimno MFDC systems sivkaw -loop tawm tswv yim tswj, tsis tu ncua saib xyuas vuam tam sim no, voltage, thiab dynamic kuj. Los ntawm kev txheeb xyuas cov teeb liab hauv lub sijhawm tiag tiag, lub kaw lus cia li kho cov khoom tso tawm tam sim no los tswj cov kev sib txuas zoo ib yam.
Nyob rau hauv cov txheej txheem automotive vuam kab, kaw - voj tswj feem ntau enables:
- Zog repeatability nyob rau hauv±2%
- Weld zog variation txo los ntawm30–40%
- Ua ntej -pass lees txais tus nqi ruaj khov ntawm99.9%
Rau siab -cov khoom siv tsheb loj, theem ntawm cov txheej txheem kev ruaj ntseg no txo qis lub sijhawm, txhim kho kev tsim khoom sib xws, thiab txo qis kev pheej hmoo ntawm kev tsim khoom.

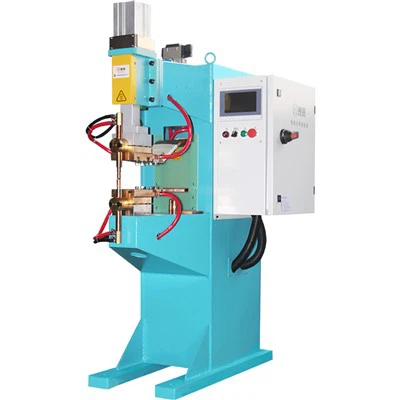

Xaiv txoj cai MFDC Spot Welding System
Xaiv qhov raugMFDC vuam khoomkoom nrog ntau tshaj qhov sib piv cov peev txheej tam sim no. Ib qhov zoo-txoj kev xaiv yuav tsum txhawb nqa ntev- cov txheej txheem kev ruaj ntseg thiab ua kom haum rau cov khoom sib txawv.
Ua ntej, waveform yooj yuav tsum tau ua tib zoo soj ntsuam. Cov qauv tsheb muaj xws li cov khoom siv sib txawv, thiab muaj peev xwm los tsim ntau theem waveform tso cai rau cov tswv lag luam kom zoo - kho lub zog xa mus rau txhua daim ntawv thov. Cov tshuab tsis muaj qhov hloov pauv hloov pauv feem ntau tawm tsam kom muaj kev ruaj khov ntawm kev sib txawv ntawm cov vuam sib txawv.
Qhov thib ob, cov lus teb yuav tsum tau txiav txim siab. Siab -cov lus tawm tswv yim raug raug tuaj yeem them nyiaj rau electrode hnav lossis cov khoom sib txawv, txo qhov xav tau ntawm phau ntawv ntsuas kev hloov kho thiab txhim kho kev tsim khoom.
Thaum kawg, kev tswj cov ntaub ntawv muaj peev xwm tau dhau los ua qhov tseem ceeb. Automotive zoo tshuab tam sim no xav tau tag nrho traceability ntawm vuam tsis. Cov kab ke uas sau cov nkhaus tam sim no, lub sijhawm vuam, thiab cov txheej txheem cov ntaub ntawv tso cai rau cov kws ua haujlwm saib xyuas keeb kwm ntawm kev tsim khoom thiab teb sai sai rau cov kev tshuaj xyuas zoo lossis cov teeb meem hauv cheeb tsam.
Tiag -Kev Tshawb Fawb Ntiaj Teb: Kev Txhim Kho Ua Ntej-Pass Yield los ntawm 97% mus rau 99.9%
Nyob rau hauv ib txoj haujlwm automotive lub cev vuam, cov chaw tsim khoom pib cia siab rau cov txheej txheem AC welding. Nyob rau tib lub sijhawm, cov kws tsim khoom tau pom qhov sib txawv tsis tu ncua, luv luv electrode lub neej, thiab cov teeb meem tsis tu ncua. Tom qab ua qhov kev ntsuam xyuas cov txheej txheem ntxaws, qhov chaw tau hloov kho mus rau MFDC vuam tshuab thiab ua kom zoo dua qhov kev ua haujlwm waveform.
Cov txiaj ntsig tau tseem ceeb:
Welding Performance ua ntej thiab tom qab kev txhim kho
| Metric | Ua ntej hloov kho | Tom qab Upgrade |
|---|---|---|
| Thawj -Pass Yield | 97.2% | 99.9% |
| Spatter Rate | 28% | 8% |
| Electrode Lub Neej | 2,500 welds | 4,500 welds |
| Lub sij hawm sib tsoo | Lub hauv paus | Txo los ntawm 40% |
Cov ntaub ntawv no qhia tau hais tias waveform optimization muab cov txiaj ntsig nyiaj txiag ntsuas tau. Los ntawm kev txo cov spatter thiab txo qis rework, ntau lawm efficiency txhim kho thaum cov nqi khiav lag luam poob ntau heev.
Xaus
Raws li automotive manufacturing txuas ntxiv hloov mus rau siab - cov ntaub ntawv muaj zog, ntau - txheej txheej, thiab cov tshuab tsim hluav taws xob, vuam tswj tau zoo tau hloov pauv los ntawm kev hloov kho cov ntaub ntawv mus rau cov ntaub ntawv - tsav precision engineering. MFDC qhov chaw vuam thev naus laus zis, ua ke nrog ntau- theem waveform tswj thiab kaw- lub voj voog tawm tswv yim, muab qib kev ruaj ntseg uas yuav tsum tau ua rau kev tsim tsheb niaj hnub.
Spatter thiab tsis muaj zog welds tsis yog ib qho uas tsis tuaj yeem zam tau. Feem ntau, lawv tshwm sim los ntawm kev tswj tsis txaus ntawm cov hluav taws xob hluav taws xob ntau dua li cov khoom siv uas tsis muaj kev txwv. Thaum vuam tshuab muaj peev xwm tswj tau lub zog xa khoom nrog precision thiab kho dynamically rau cov txheej txheem variations, weld zoo ua kwv yees thiab rov ua dua.
Rau cov tuam txhab npaj cov kab tsim khoom tshiab lossis hloov kho cov tshuab uas twb muaj lawm, kev nqis peev hauv MFDC thev naus laus zis nrog kev tswj cov waveform siab tsis yog ib qho kev hloov kho tshiab. Nws sawv cev rau lub sijhawm ntev - lub tswv yim los txhim kho qhov sib xws ntawm vuam, txo cov nqi khiav lag luam, thiab tswj kev sib tw hauv qhov chaw tsim khoom uas xav tau ntau ntxiv.
